what is an electrical motor?

So what is an electrical motor?

To create mechanical energy, an electric motor consists of several ingredients which usually use electromagnetic fields to come up with mechanical energy. They are available in many different shapes and sizes and designs. Some electric-powered motors are effective enough to drive an entire automobile, although some are extremely small that they can fit into the tiniest of computer systems.

Electric-powered motors are probably the most efficient method of generating useful mechanical energy and are also employed in an amazing range of roles because of their efficiency and the reality they are extremely durable equipment.

Where are you able to find electric motors in our everyday life and how will they help us?





Electric-powered motors are available in a variety of products, right at the dwelling. As an example, just about every fan in anybody's home may include an electrical motor that propels the blades, transforming electrical energy into mechanical energy, which turns the mechanical energy of the blades into an airflow that circulates air throughout the living room.

Electric motors may also be found in power equipment. They power drill bits, circular saw blades, and even more. Their long life and sturdiness make them a wonderful answer for this requirement, likewise in heavy industrial use exactly where various other equipment may not be capable of handling the stress that electric motors are designed for.

Electric-powered motors you might have never seen can significantly impact your life. As an example, just about all pumping stations employ electric-powered motors to supply households with running water. Electric-powered motors are actually used in substantial ships, in which they motivate propellers to propel the ship through the water.

Electric-powered motors are almost everywhere, and in many cases, a few appliances are hard to come together without finding a great appliance with an electric motor someplace. Right from toys to fans of air conditioners and heating devices and even more, electric-powered motors are probably the most commonly used electrical parts at the moment.

How exactly does an electric motor work?

The working concept of the electric motor is very easy. As outlined by physics, when an electrical current is presented into a magnetized field, a force is built. Electric motors employ looped cords (the same wires that hold current) that happen to be placed at right angles to the magnetized field in the electric motor. As the magnetic field is certainly bipolar, each individual end of the wire steps in a different direction. This creates a rotational movement.

Torque is normally subject to adding many of these loops to the armature, and the magnetized field is created by an electromagnet. That layout enables the rotor to be turned by basic electromechanical electric power with few parts really going to experience any wear and incorporating both of these criteria the motor can stay in operation for a long period of time with hardly any wear.

What are the parts inside the motor?

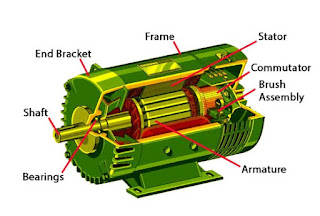

Probably the most striking thing about electric-powered motors is just how few parts they consist of. As an example, an electrical motor is an extremely simple system in comparison to an internal combustion engine motor. Actually, all the various parts of an electric motor may be easily drawn out and put on a very small bench, concerning the size of the motor, certainly.

  • Frame: That is the container that contains all the different parts of the electric motor.
  • Shaft: Takes rotational energy out of this rotation of the motor and offers a method to utilize that energy through a mechanical connection: A piece of metal stretches through and out from the frame.
  • Stator: It stays fixed and generally makes up the magnetic field of the electric motor. It can be a permanent magnet or perhaps an electromagnet. Electromagnets include a coil, generally made of copper cord.
  • Commutator: Found beside the stator, that element reverses the direction of current circulation throughout the equipment. It's just one of the moving parts inside an electric motor.
  • Brush Assembly: The brush assembly is within exposure to the commutator and simply behaves as a switch that accomplishes the flow of current.
  • Bearings: The bearings on the electric motor are found near where the shaft leaves that frame. This allows the shaft to spin with bare minimum friction and avoids unwanted motion.
  • Armature: The armature is the current-carrying ingredient at the center of the electric motor system. It interacts with the magnetized field and windings to come up with mechanical torque that delivers rotation for the shaft.
  • End Bracket: The end bracket is in fact connected to the frame at the end of that motor shaft, offering a way of securing the machine and the shaft by which the opening is to pass.

Windings are familiar to any individual familiar with other electric-powered components. They are often simple windings wound across a magnetized core. When current moves through each one of these windings, they make a magnetic field. The field poles among the magnets in these gadgets come in two diverse settings. A salient pole arrangement comes with a winding around a pole located under the pole surface. Non-salient poles utilize the pole face slots of these windings.

The rotor is the part that really turns electrical energy right into mechanical energy. All these parts are available in many different styles. One of the greatest advancements in motor development was locating a way that the rotor could operate continuously, offering uninterrupted torque to the electric motor. Modern-day electric motors are in a position to produce amazing torque.

A commutator is a real gadget employed to switch the engine motor input.

Truth be told, the air gap inside the motor is also a viable part of the equipment. The air space is frequently created to be really small, and the smaller sized the air gap, the greater the overall performance of the electric motor is usually.

start the engine motor

Electric-powered motors use various launching mechanisms. In the easiest and smallest version, the starter could be hooked up straight to the current source. Larger electric motors need to have more advanced starters. Which include:

  • DOL: The direct-on-line starter is generally attached to the mains without any extra control devices. The DOL starter supplies the electric motor with complete load voltage immediately after setting it up. The restriction of this technique is that it doesn't offer motor control. Whenever energized, an electrical motor starts at complete speed and complete torque, which might transfer mechanized stress to the load. DOL start-up is primarily employed for smaller equipment. Examples include motors that run water pumping systems and other basic equipment, that only need to turn in a single direction. Their main benefit is that complete voltage is employed on the electric motor at once. The disadvantage is the absence of control.
  • Step-down (soft starter): A step-down starter enables the owner to start devices at a decreased voltage. The owner can determine limits for starting current and also other parameters. The Star Delta starter is actually a soft starter that little by little boosts the voltage to the maximum load as the electric motor velocity raises.
  • The benefit of a reduced voltage starter would be that the mechanical stress and torque output on the load can now be manipulated. Contrary to the situation with DOL starters, an electrical motor doesn't begin suddenly at 100 % torque and velocity, nevertheless gradually rotates up.
  • Soft starters are generally employed for high-power electrical motors. An electrical reduced voltage is merely for inrush current, far from controlling the velocity, Torque and Forward-reverse control of the electric motor. Most of the time, reduced inrush current can be used to prevent sudden great voltages from the electric power supply, and that's essential to adhere to utility company recommendations. Soft starters are easily employed for motors that require high-voltage draws. The progressive increase in voltage enables better control over power consumption and eliminates the threat of sudden considerable amounts of torque and spin to the equipment.
  • Variable Speed Drives: Adjustable speed drives, also called variable frequency drives, are typically employed with three-phase induction electrical motors. All these starters are being used in electronic motors of numerous shapes and sizes. The most important benefit of this kind of starter is that it enables the operator to boost or reduce the speed and torque of the electric motor by varying the voltage and input rate of recurrence. Adjustable speed drives are the most complicated motor starters but provide the maximum level of control and as well, features. Through industrial configurations, their control over torque, stress, acceleration and as well, and flow all provide the effectiveness and controllability of the systems.

Circuit breakers are occasionally employed to give switches for electric-powered motors, but they are most of the time only employed when substantial voltages are employed on the machine.

What kinds of electric power motors are there

  • AC geared motors. AC-geared motors employ alternating current as an energy source. Gear engine motor installations offer a reduction gear train which makes it less difficult for technicians to build gear that needs a particular type of gear. They are available in many different settings and they are found in a variety of different solutions, right from large manufacturing automation techniques to building really small, miniature equipment just like toy motors and even more.
  • AC electric motors. AC electric motors are actually known for very low expense, and great efficiency, and is utilized in numerous various products. They employ alternating current as their energy source and can be manufactured in substantial sizes able to handle substantial loads.AC motors are being used in many different unique consumer machines, such as record tongs, fans, electric power utilities, plus much more. They are also employed in abundant industrial application forms.
  • DC-geared electronic motors. DC-geared electronic motors, such AC geared electronic motors, come with a reduction gear train coupled to the unit. They are usually employed by electrical technicians because of the convenience of not having to make the gear train themselves.
  • DC motors. DC motors employ direct current as their energy source, and so they get their own benefits and drawbacks in comparison to motors driven by means of alternating current. There are numerous configurations of DC electrical motors with different DC motor speed. Brushed DC motors, permanent magnet DC electronic motors, and many others. What they share is that both equally DC motors employ DC as their energy source. This will make any of them compatible with applications where AC electric power may not be the perfect answer, just like flat-screen TVs (AC power goes into the TELEVISION SET and is changed into DC power).
  • Both of those AC and DC motors were experimented with around the same period of time (from the early 1800s) and both had a number of different usages.
  • Servo motor. A servo motor is a kind of great accuracy electric motor that has a motor (usually driven by a DC electric power source) gear train, any sort of integrated circuits needed, and high accuracy electric powered motors contained in the equipment. This causes them extremely flexible equipment. They're employed in numerous various application forms, involving all that from industrial functions to model robot structures. Servo systems are quite simple to control and can even do this control very specifically. A servo system continuously delivers feedback about their position, which makes it great for extremely precise application forms.
  • Stepper motors. Stepper motors are a form of high-precision electric motor. What distinguishes each one of these electronic motors from other different kinds of electric-powered motors is they please do not operate in a continuous manner. The motor steps from one position to a different one and stops every time a fresh position is reached, and then proceeds in the sequence. Each one of these motors has the ability to move forward or backward and offer feedback, making them so easy to control.
